單端面
內裝式
平衡型
任意旋向
MN10系列
本系列機械密封，專為高揚程、高壓力設計，材質有碳石墨，碳化石硅，硬質合金
技術參數
適應壓力:≤3.5MPA
適應溫度:-40°~220°
線速度:20M/S
技術參數
適應壓力:≤3.5MPA
適應溫度:-40°~220°
線速度:20M/S
Key words:
產品分類：
關鍵詞： MN10系列
E-mail:
產品詳情

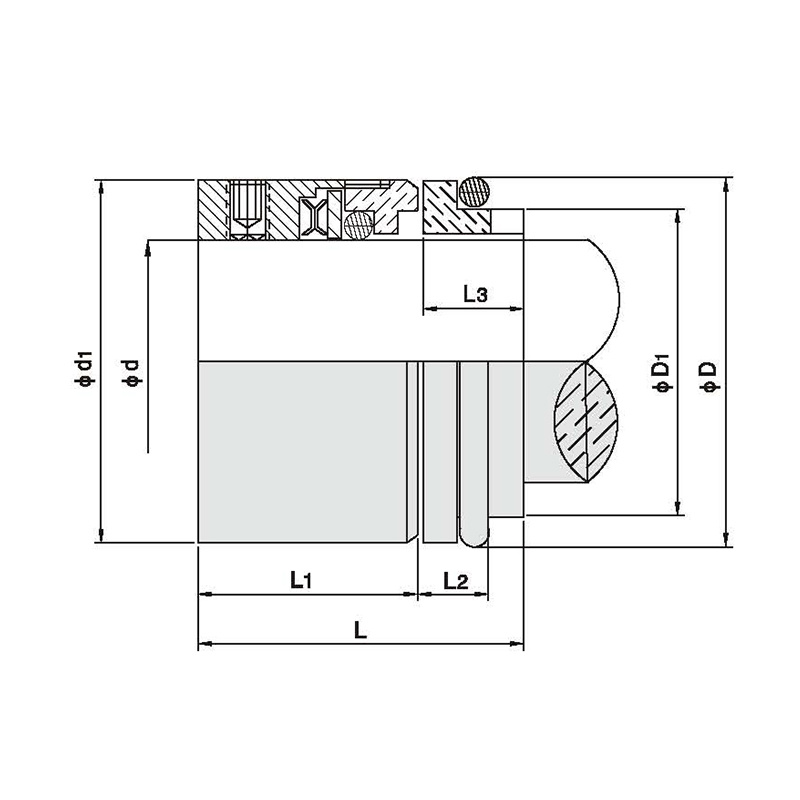

| 型號 | d | d1 | D | D2 | L | L1 | L2 | L3 |
| MN10-25 | 25 | 45 | 45 | 35 | 50 | 31 | 14 | 19 |
| MN10-30 | 30 | 50 | 50 | 40 | 50 | 31 | 14 | 19 |
| MN10-35 | 35 | 55 | 55 | 45 | 55 | 36 | 14 | 19 |
| MN10-38 | 38 | 58 | 58 | 48 | 55 | 36 | 14 | 19 |
| MN10-40 | 40 | 60 | 60 | 50 | 55 | 36 | 14 | 19 |
| MN10-43 | 43 | 63 | 63 | 53 | 55 | 36 | 14 | 19 |
| MN10-45 | 45 | 65 | 65 | 55 | 55 | 36 | 14 | 19 |
| MN10-48 | 4B | 68 | 68 | 58 | 60 | 41 | 14 | 19 |
| MN10-50 | 50 | 70 | 70 | 60 | 60 | 41 | 14 | 19 |
| MN10-53 | 53 | 73 | 73 | 63 | 60 | 41 | 14 | 19 |
| M10-55 | 55 | 75 | 75 | 65 | 60 | 41 | 14 | 19 |
| MN10-58 | 58 | 78 | 78 | 68 | 60 | 41 | 14 | 19 |
| MN10-60 | 60 | 80 | B0 | 70 | 60 | 41 | 14 | 19 |
| MN10-65 | 65 | 90 | 90 | 80 | 70 | 48 | 17 | 22 |
| MN10-70 | 70 | 97 | 97 | 85 | 70 | 45 | 19 | 25 |
| MN10-75 | 75 | 102 | 102 | 90 | 70 | 45 | 19 | 25 |
| MN10-80 | 80 | 107 | 107 | 95 | 75 | 50 | 19 | 25 |
| MN10-85 | 85 | 112 | 112 | 100 | 75 | 50 | 19 | 25 |
| MN10-90 | 90 | 117 | 117 | 105 | 75 | 50 | 19 | 25 |
| MN10-95 | 95 | 122 | 122 | 110 | 75 | 50 | 19 | 25 |
| MN10-100 | 100 | 127 | 127 | 115 | 75 | 50 | 19 | 25 |
| MN10-105 | 105 | 134 | 134.3 | 121.5 | B0 | 50 | 20 | 30 |
| MN10-110 | 110 | 140 | 140.3 | 127.5 | B0 | 50 | 20 | 30 |
| MN10-115 | 115 | 148 | 148.3 | 135.5 | 80 | 50 | 20 | 30 |
| MN10-120 | 120 | 150 | 150.3 | 137.5 | B0 | 50 | 20 | 30 |
| MN10-125 | 125 | 154 | 154.3 | 141.5 | 85 | 50 | 20 | 30 |
| MN10-130 | 130 | 158 | 158.3 | 1455 | 85 | 55 | 20 | 30 |
| MN10-135 | 135 | 164 | 164.3 | 151.5 | 85 | 55 | 20 | 30 |
| MN10-140 | 140 | 168 | 168.3 | 155.5 | 85 | 55 | 20 | 30 |
| MN10-145 | 145 | 173 | 173.3 | 160.5 | 85 | 55 | 20 | 30 |
| MN10-150 | 150 | 180 | 180.3 | 167.5 | B5 | 55 | 20 | 30 |
| MN10-155 | 155 | 185 | 185.3 | 172.5 | 85 | 55 | 20 | 30 |
| MN10-160 | 160 | 190 | 190.3 | 177.5 | B5 | 55 | 20 | 30 |
